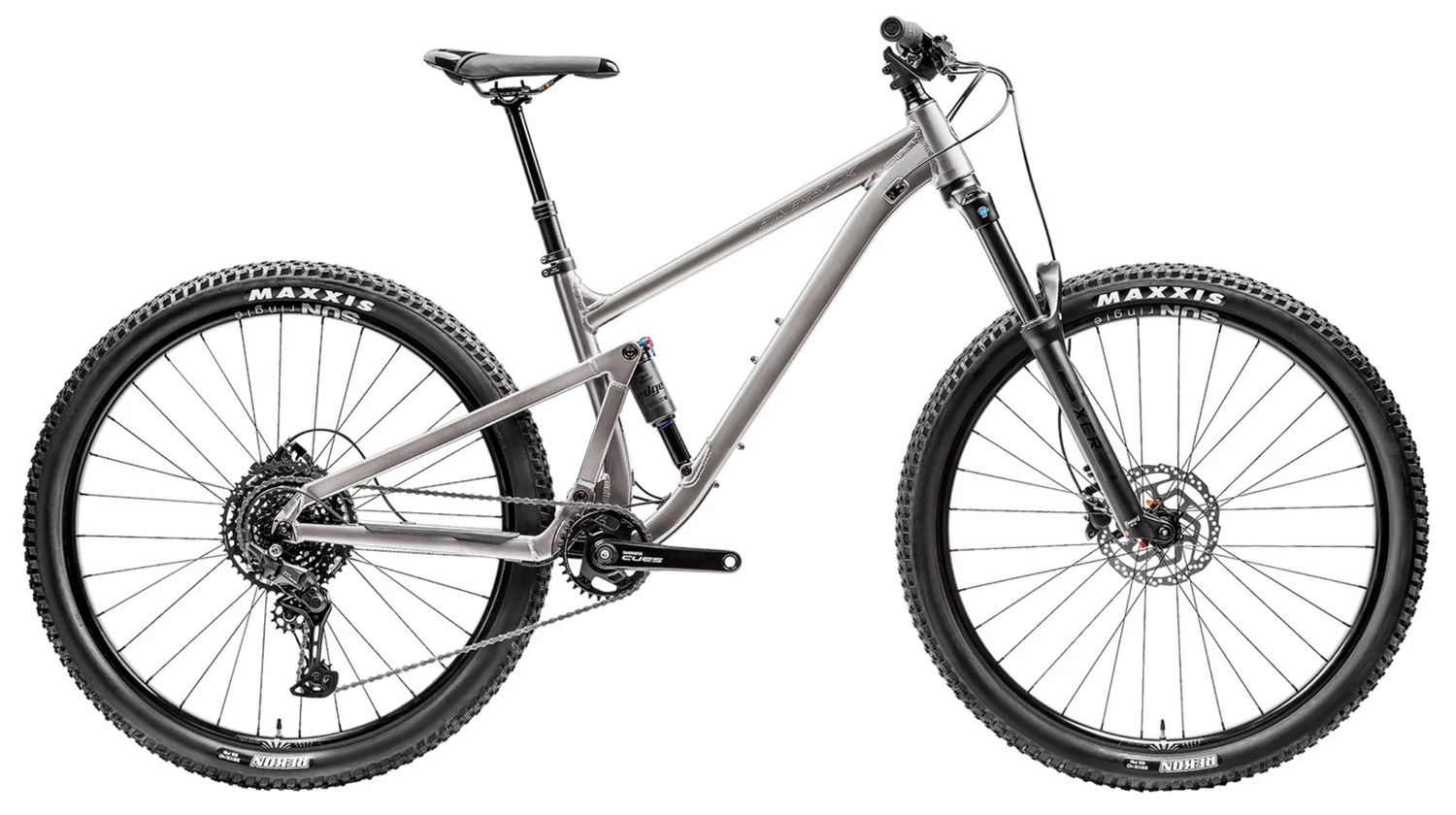

25 SE SERIES TRAIL 10 29 MOONDUST METALLIC

The SE:Series Trail is a lightweight aluminium dual-suspension trail bike crafted for speed, comfort, and control. With its balanced geometry, it ensures confident climbing and descending, while the 140mm single-pivot suspension delivers consistent handling, excellent trail feedback, and reliable performance. The low standover frame accommodates long-travel dropper posts and provides space for two water bottles, making it ideal for longer rides.

Specifications

Frame

• Alloy Trail Dual Suspension Frame
• True single pivot design with 140mm rear travel
• 185x52.5mm Trunnion Shock
• BSA Bottom Bracket
• Boost 148 spacing

Suspension

• Fork: SR Suntour XCR34 AIR, 140mm
• Rear Shock: Suntour RS24 EdgeX, 2CR, Custom Tuned, Trunnion, 185x52.5mm

Shock Mounting

• Body: Trunnion, M10x54mm
• Shaft: Standard, 8x30mm

Headset

• Semi-Integrated Threadless Headset (ZS44/28.6 | ZS56/39.8)

Axle Specifications

• Frame Axle Spacing: 148x12mm
• Axle Specification: 181x12mm P1.75

Hanger Type

• HANGER 3

Wheels and Tyres

• Wheelset: SUNringlé Custom Wheelset
• Hubs:
  • Front: Shimano HB-TC500-15-B, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm
  • Rear: Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm
• Rims: SUNringlé 329, Sleeved, STR Tubeless
• Tyres: Maxxis Rekon 29x2.4" (Max Tyre Size: 2.5”)

Drivetrain

• Crankset: Shimano FC-U4000-1 CUES, 32T, 170mm (Max Chainring Size: 32T)
• Bottom Bracket: BSA73
• Shifter: Shimano SL-U6000-10R CUES 10-Speed, Rapidfire Plus
• Rear Derailleur: Shimano RD-U6000 CUES, 10/11 Speed
• Cassette: Shimano CS-LG300-10 CUES, 10-Speed, 11-48T
• Chain: Shimano CN-LG500 LG, 9/10/11 Speed

Brakes

• Brakes: Shimano MT200 2-piston Hydraulic Disc, Resin Pads
• Rotors: Shimano SM-RT10 Rotor, 180mm, Centre Lock

Cockpit

• Grips: SURFACE Double Density Lock-On
• Handlebar: SURFACE Alloy, Ř31.8mm, 9° Back sweep, 20mm Rise
• Stem: SURFACE Alloy, 31.8mm, 45mm Extension, 3° Rise

Seat and Post

• Saddle: SURFACE Ergo
• Seat Post: SURFACE Dropper Post with Remote Lever, Ř30.9mm
  • Travel: S:100mm / M:125mm / L:150mm / XL:170mm
• Seatpost Clamp: SURFACE Alloy with Steel Bolt

Additional Information

• Pedals: Not Included
• Bike Weight: 14.8 Kg
• Rider Weight Limit: 120kg (combined weight of bike and rider, including all kit)

This bike is built to handle the demands of the trail while delivering outstanding performance and reliability. Perfect for riders looking for a combination of speed, comfort, and control.
