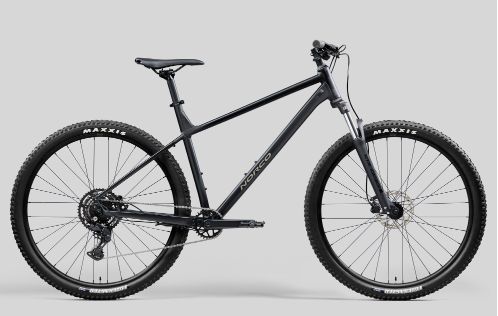

25 STORM 100 BLACK

The Storm 100 is designed with a progressive off-road design and features that will help you discover your favorite way to ride.

Specifications

Frame

• Aluminum, Smooth Welding, 12x148mm Boost

Fork

• Suntour XCT-30 DS Coil, 100mm travel, 46mm offset, 9x100 QR

Headset

• Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"

Cockpit

• Grips: DDK Lock-On, 139mm length
• Handlebar: 6061 Alloy DB, 750mm (S) / 780mm (M, L, XL, XXL), 30mm rise
• Stem: Alloy, 50mm Length, 31.8mm Clamp
• Seat Post: Alloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length
• Saddle: Norco XC, Steel Rail

Brakes

• Front Brake: Tektro HD-M275, Resin pads
• Rear Brake: Tektro HD-M275, Resin pads
• Brake Rotors: Tektro, 160mm rotors, 6-bolt
• Brake Levers: Tektro HD-M275

Drivetrain

• Shifter (Rear): Shimano Cues SL-U4000, 9-speed
• Rear Derailleur: Shimano Cues RD-U4000, GS, 9-speed
• Cassette: Shimano Cues CS-LG300-9, 11-46T, 9-speed
• Chain: KMC Z9
• Crankset: Prowheel Alloy, 30T, 170mm (S-M), 175mm (L-XXL)
• Bottom Bracket: Cartridge, ST 73mm, 113mm axle length

Wheels

• Front Hub: Formula DC-1420, 9x100mm QR, 32h, 6-bolt
• Rear Hub: Formula DC-1422, 10x135mm QR, HG, 32h, 6-bolt
• Spokes/Nipples: Stainless Steel, 14g
• Rims: WTB STi25, 25mm ID, 32H, Tubeless compatible

Tires

• Front Tire: Maxxis Ardent, 29x2.25" (27.5x2.25" for S), Wire
• Rear Tire: Maxxis Ardent Race, 29x2.2" (27.5x2.2" for S), Wire

With its carefully crafted components and off-road-ready features, the Storm 100 is built to take on your adventures with confidence!
