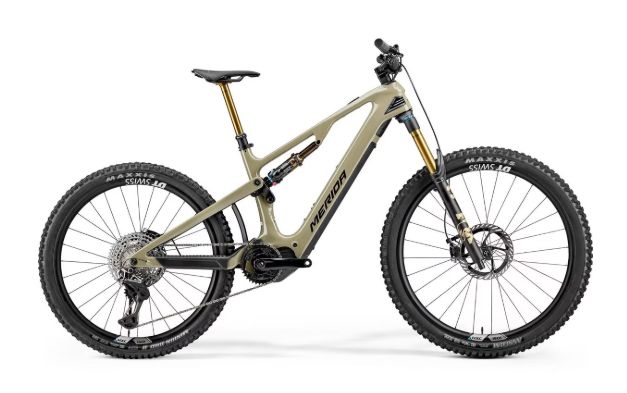

26 EONE SIXTY LIMITED OAK BARK

Specifications

Season

• 2026

Brakes

• Shimano XTR, 4 piston

Cassette

• Shimano XTR, 10-51,12

Chain

• Shimano XTR M9100

Colour

• Oak Bark (Golden Black)

Crankset

• FSA 1x Steel Chainring, 36t
• Shimano FC-EM900, 165mm (all sizes)

Rear Derailleur

• Shimano XTR Di2

Fork

• Fox 36 Float Factory
  • Air, 160 STR
  • Tapered, 44mm fork offset
  • 29x2.6" max WHS

Frame

• eONE-SIXTY CF III
  • MAT carbon
  • 160 STR
  • 29” x 2.6” max WHS
  • 148x12 AST
  • Intube design
  • Max. 600 Wh

Grip

• MERIDA EXPERT TR

Handlebar

• Race Face Era, 780 WHB

Handlebar Stem

• MERIDA EXPERT eTR II
  • MAT aluminium
  • 35 DSH
  • 0 ASD
  • Supernova mount
  • 40 mm (all sizes)

Headset

• Acros ICR MERIDA INTEGRATED
  • Neck with Blocklock

Lights

• Front: CG-119PG-BLACK(1)
• Rear: CG-404RG-BLK

Pedals

• VP VP-532

Rims

• DT Swiss HXC 1501
  • 110x15 WHF
  • 148x12 WHR
  • 30 IWR
  • CenterLock
  • SRAM XD
  • MAT carbon
  • Tubeless ready (tubeless tape and valves included)

Rotors

• Front: Shimano CL900, 203 mm
• Rear: Shimano CL900 with Magnet, 203 mm

Saddle

• Prologo Nago R4 Nack, 147mm
  • V-mount adapter
  • Includes MERIDA minitool

Seat Clamp

• MERIDA EXPERT

Seat Post

• Fox Transfer Factory Series
  • 34.9 DSP
  • 0 SSB

Shifters

• Shimano XTR Di2 M9250

Shock

• Fox Float X Factory
  • 2 Pos Lever

Tyres

• Front: Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip
• Rear: Maxxis Minion DHR II, 27.5x2.4", fold, TR EXO+ 3C MaxxTerra

---

Key Features

• Powerful Shimano EP801 motor with 85Nm torque
• Integrated 600Wh Trendpower battery
• Carbon frame with crossbar design
• Fox 36 Float Factory suspension fork
• Shimano XTR Di2 electronic shifting

---

Motor/Drive Unit

• Shimano EP801, 85Nm
  • Motor Brand: Shimano
  • Motor Model: STePS EP801
  • Motor Power: 250 watts
  • Motor Torque: 85 Nm

---

Battery

• Trendpower TPS-C15-58SD, 600Wh integrated
  • Battery Brand: Trendpower
  • Battery Size: 600 watt-hours

---

Display

• Shimano SC-EM800
