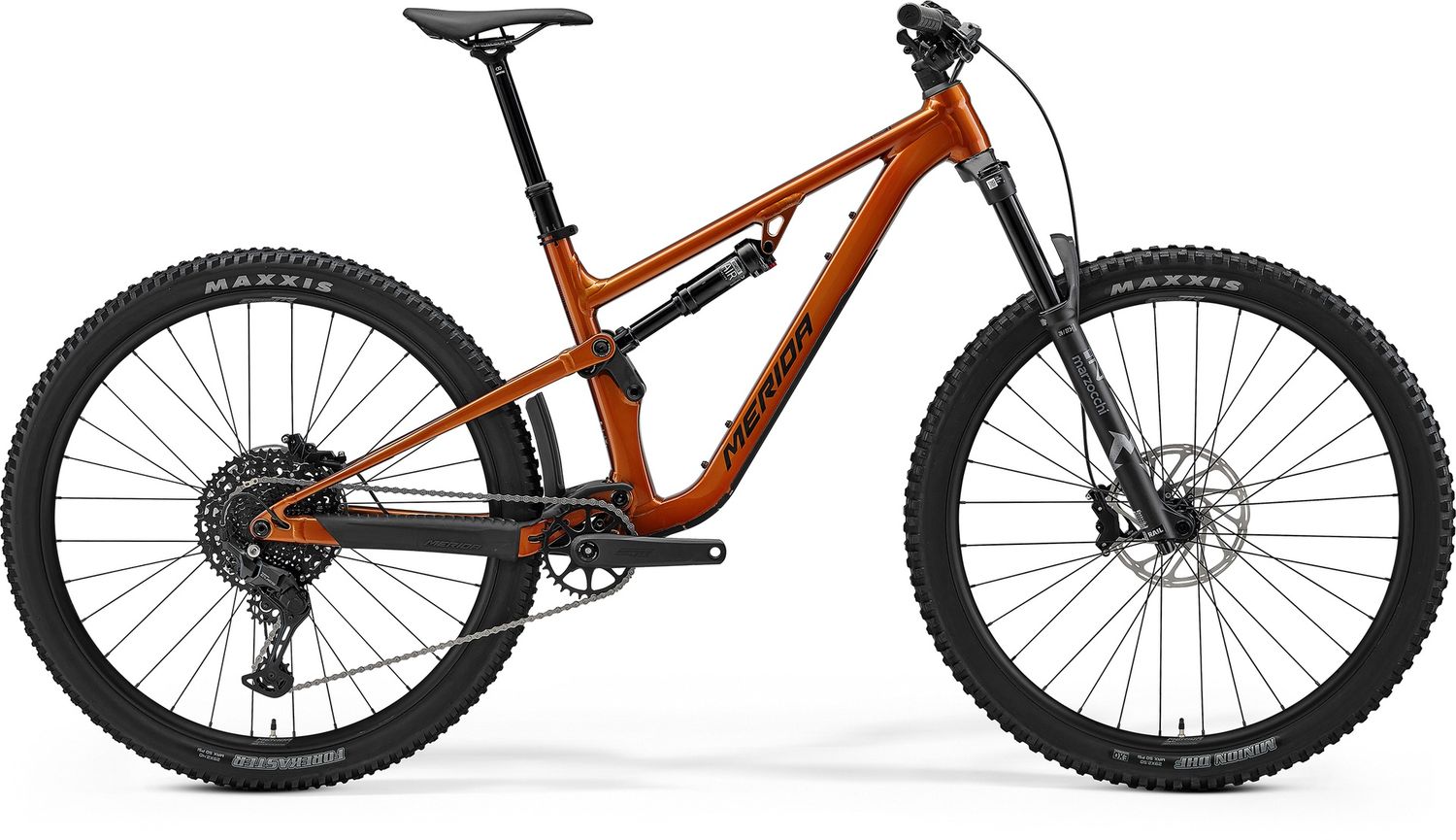

26 ONE FORTY 400 WILD HONEY

The same ground-breaking trail bike geometry as its more expensive brethren, just paired with an all-aluminium frame and kit that delivers the performance you need, without the chunky price tag.

Specifications

Frame

• ONE-FORTY LITE III, 143 STR 29"
• Material: MAT aluminium
• Max Tyre Size: 29x2.5"
• Rear Axle: 148x12 AST
• Bottom Bracket: BSA BBR

Suspension

• Shock: Marzocchi Bomber inline
• Fork: Marzocchi Z2, Air, 150 STR, Tapered, 44mm fork offset, 29x2.6" max.

Brakes

• Front Brake: Sram DB4, 4 piston
• Rear Brake: Sram DB4, 4 piston
• Front Rotor: Sram CenterLine, 200mm
• Rear Rotor: Sram CenterLine, 200mm

Drivetrain

• Chain: KMC xGlide
• Crankset: MERIDA Expert TR II, 32t
• Crank Length: 170 mm for all sizes
• Bottom Bracket: Samox BSA 24mm EB2401
• Front Derailleur: None
• Rear Derailleur: Shimano CUES U6000, Shadow Plus
• Cassette: SunRace 10-50t CS-UX400 EA5, 10-50t, 11-speed Linkglide
• Front Shifter: None
• Rear Shifter: Shimano CUES U6000

Wheels

• Front Hub: Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock
• Rear Hub: Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
• Rims: MERIDA COMP TR II, 110x15 WHF, 148x12 WHR, 28 IWR, MAT aluminium, Tubeless ready (tubeless tape and valves not included), 29"
• Front Tyre: Maxxis Minion DHF, 29x2.5", wire
• Rear Tyre: Maxxis Forekaster, 29x2.4", wire

Cockpit

• Grips: MERIDA COMP TR
• Handlebar: MERIDA COMP TR, MAT aluminium, 780 WHB, 20 RHB
• Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD
• Stem Size: 40 mm
• Headset: Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

Saddle & Seatpost

• Saddle: MERIDA COMP SL, 25% recycled material, V-mount, includes MERIDA minitool
• Seat Clamp: MERIDA EXPERT
• Seat Post: MERIDA EXPERT TR II, 34.9 DSP
  • Travel:
    • XSHORT/SHORT: 150mm
    • MID: 170mm
    • LONG: 200mm
    • XLONG: 230mm

Additional Notes

• Pedals are not included in the package.
• Tubeless tape and valves for rims are also not included.

This bike offers the perfect combination of high-performance geometry and an affordable aluminium frame, making it an excellent choice for trail enthusiasts seeking premium features without breaking the bank.
