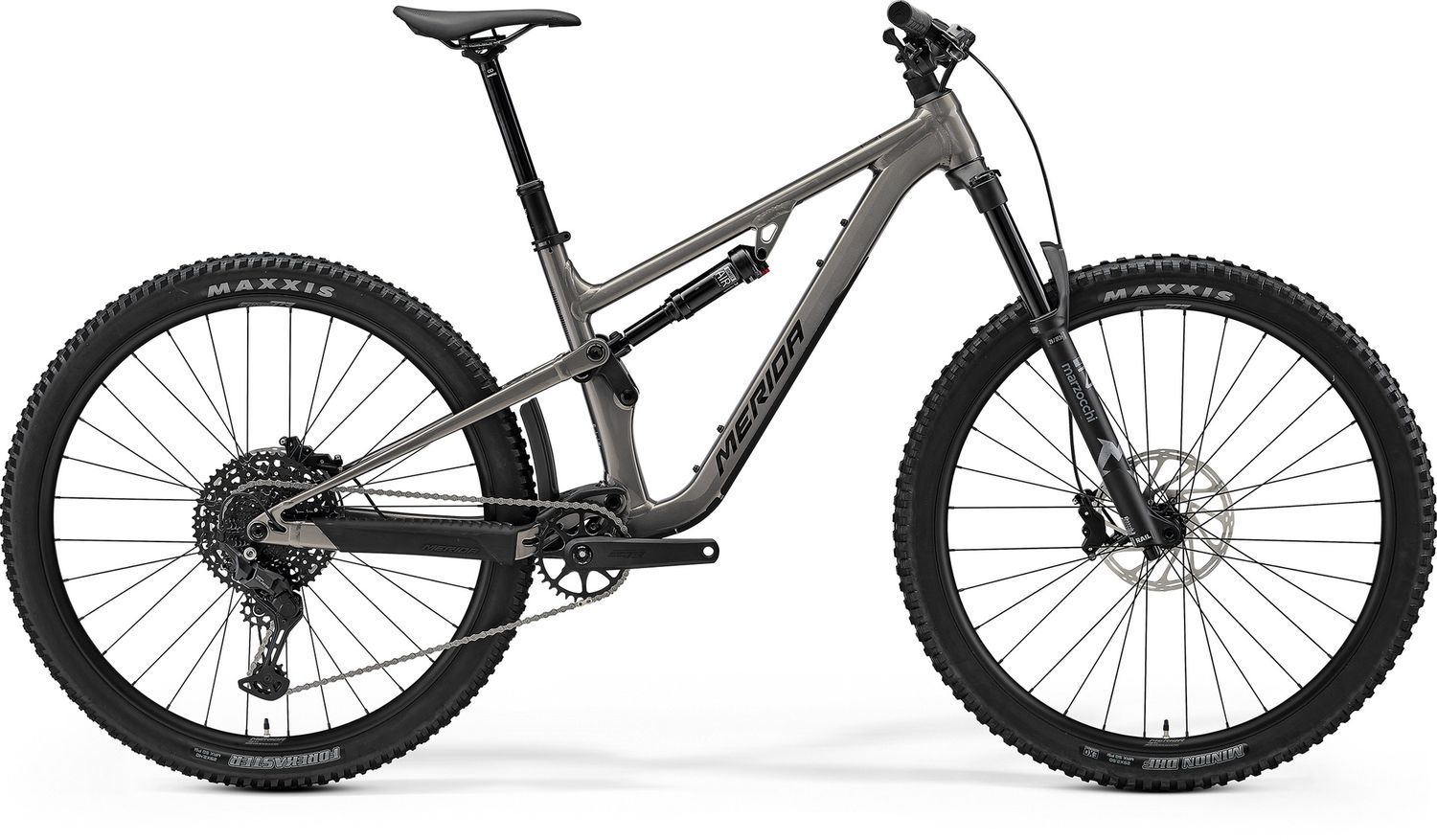

26 ONE FORTY 400 XLONG GREY/GOLDEN BLACK

The same ground-breaking trail bike geometry as its more expensive brethren, just paired with an all-aluminium frame and kit that delivers the performance you need—without the chunky price tag.

Specifications

Frame

• ONE-FORTY LITE III, 143 STR 29"
• Material: MAT aluminium
• Max tire width: 29x2.5"
• 148x12 AST, BSA BBR

Suspension

• Shock: Marzocchi Bomber inline
• Fork: Marzocchi Z2, Air, 150 STR, Tapered, 44mm fork offset, Max tire width: 29x2.6"

Brakes

• Front Brake: Sram DB4, 4 piston
• Rear Brake: Sram DB4, 4 piston
• Front Rotor: Sram CenterLine, 200mm
• Rear Rotor: Sram CenterLine, 200mm

Drivetrain

• Chain: KMC xGlide
• Crankset: MERIDA Expert TR II, 32t
• Crank Length: 170 mm for all sizes
• Bottom Bracket: Samox BSA 24mm EB2401
• Rear Derailleur: Shimano CUES U6000, Shadow Plus
• Cassette: SunRace 10-50t CS-UX400 EA5, 10-50t, 11sp Linkglide
• Rear Shifter: Shimano CUES U6000

Wheels & Tires

• Front Hub: Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock
• Rear Hub: Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock
• Rims: MERIDA COMP TR II, Tubeless ready (tubeless tape and valves not included), 29", 28 IWR, MAT aluminium
• Front Tire: Maxxis Minion DHF, 29x2.5", wire
• Rear Tire: Maxxis Forekaster, 29x2.4", wire

Cockpit

• Grips: MERIDA COMP TR
• Handlebar: MERIDA COMP TR, MAT aluminium, 780 WHB, 20 RHB
• Stem: MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD, Size: 40 mm
• Headset: Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing

Seat & Post

• Saddle: MERIDA COMP SL, 25% recycled material, V-mount, incl. MERIDA minitool
• Seat Clamp: MERIDA EXPERT
• Seat Post: MERIDA EXPERT TR II, 34.9 DSP
  • Travel:
    • XSHORT/SHORT: 150mm
    • MID: 170mm
    • LONG: 200mm
    • XLONG: 230mm

Additional Notes

• Pedals are not included in the package.
• Tubeless tape and valves for rims are also not included.

This bike is designed to deliver exceptional trail performance while keeping costs in check, making it an excellent choice for riders seeking quality and value.
