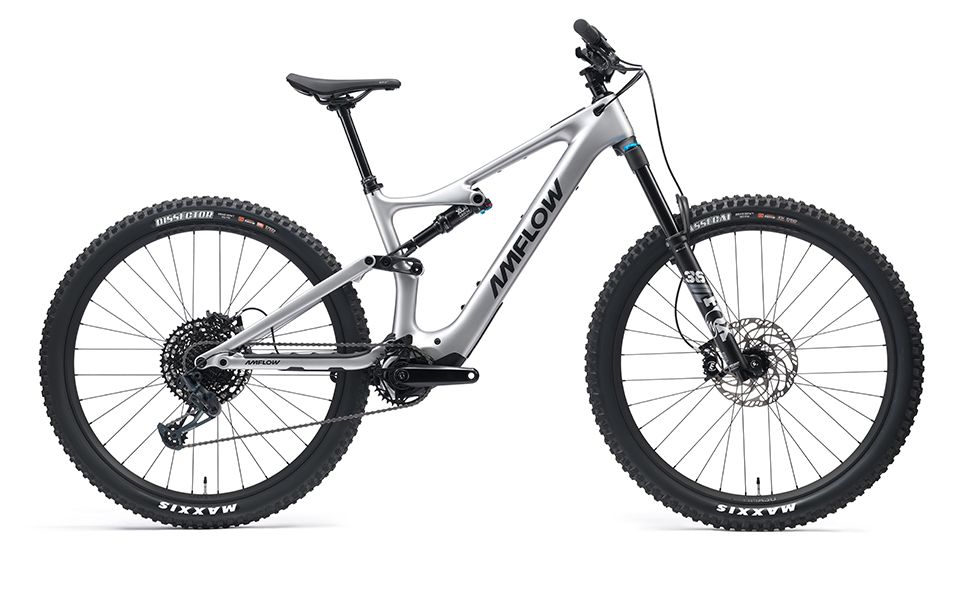

AMFLOW PL CARBON 25 (800WH) XL

The Amflow PL delivers 850 watts of peak power in an ultra-light build. With its unmatched blend of power, range, weight, and intelligent features, this revolutionary eMTB is designed for trailblazers. Engineered to perfection, this full-power eMTB offers a lightweight body for the ultimate riding experience.

---

Lightweight Carbon Fibre Frame

• Ultra-light carbon fibre frame weighing just 2.27 kg, ensuring exceptional speed and agility.

---

Avinox M1 Drive Unit

• Features a compound planetary gearset with an industry-leading power-to-size ratio.
• Built with durable, high-strength polymer material to effectively suppress noise during high-speed gearbox operation.
• Equipped with multiple precision sensors and advanced algorithms for strong, smooth assistance across various terrains and conditions.

Key Specifications:

• Max Continuous Torque: 105 N·m
• M1 Drive Unit Weight: 2.52 kg
• Peak Power: 850 W

---

Five Modes for Targeted Assistance

• Traditional modes: Eco, Trail, and Turbo.
• Auto Mode: Real-time adaptive assistance based on road conditions and riding position.
  • Empowers riders to handle diverse terrains and gradients without switching modes.
• Boost Mode: Provides 120 N·m of torque and 1000W high-power assistance, perfect for challenging trails or steep inclines.

---

Intelligent Walk Assist & Effortless Control

• Walk Mode: Intelligent walk assistance for easy incline traversal.
• Auto Hold: Prevents rollback on slopes.
• Hill Start Assist: Offers additional torque for starting on inclines.
• Stationary Gear Shifting: Ensures smooth and intuitive riding.

---

Battery and Range

• Lightweight Battery: Weighs just 2.87 kg and boasts ultra-high energy density for extended range.
• Battery Health Management System: Includes real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts.
  • Maintains 80% of its initial capacity even after 500 full charge-discharge cycles.

GaN 3x Fast Charging:

• Compact fast charger recharges the battery from 0% to 75% in just 1.5 hours.

---

Geometry and Handling

• Cutting-edge frame design with lightweight and hyper-agile geometry for balanced performance.
  • Ideal for rugged trails and technical rides.

29" and 27.5" Compatible:

• Accommodates both 29" and 27.5-inch rear wheels.
• Adjustable flip chips enable wheel size changes without altering the frame's geometric center of gravity.

Advanced Four-Bar Linkage Design:

• Enhances pedaling efficiency, ensuring every stroke counts.

Superior Suspension:

• Co-tuned rear shock with FOX for sensitive initial stroke response and powerful end-stroke support.
  • Filters minor vibrations and prevents bottom-outs during high-speed impacts or steep descents.

---

Built-in Display & Connectivity

• 2-inch full-color OLED touchscreen:
  • Displays real-time ride data and estimated range.
  • Allows quick content changes with a simple slide.

Smartphone Connectivity:

• Configure anti-theft settings via the Avinox Ride app, including:
  • Password authentication.
  • Abnormal movement alerts.
  • Real-time location tracking (SIM card required).
  • Phone Key: Automatically unlocks the bike based on proximity.

Customizable Parameters:

• Adjust home screen display, power, torque, and cadence to match your riding style.

Comprehensive Data Recording:

• Track speeds, range, cadence, power, torque, gradient, altitude, calories burned, ride times, heart rate, and more.
• Sync seamlessly with Strava.

---

Performance Components

Fork:

• FOX 36 Performance - 160mm travel, GRIP Damper, 15×110mm, 44mm rake

Shock:

• FOX Float Performance - Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Transmission:

• Rear Derailleur: SRAM GX Eagle 12-speed
• Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
• Shift Levers: SRAM GX Eagle Trigger Shifter (Single Click)
• Cassette: SRAM PG-1230, 11-50T
• Chain: SRAM NX Eagle
• Crankset: Avinox SL Crank (M/L: 155mm; XL: 160mm)

Brakes:

• Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3
• 203mm MDR-C Rotor (front and rear)

Wheels:

• Rims: Alloy, 29", 30mm internal width, 32H, tubeless-ready
• Spokes: SAPIM E-Light J-bend
• Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
• Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tires:

• Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
• Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar:

• Amflow Enduro Alloy Handlebar, 35mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep

Grips:

• Amflow Enduro Grips

Stem:

• Amflow Enduro Stem, One-piece CNC
  • Length: 35mm
  • Clamping diameter: 35mm

Saddle:

• Selle Royal SRX Plus

Seatpost:

• KS Rage-i:
  • M: 150mm
  • L: 170mm
  • XL: 190mm

---

Accessories

• Quick Start Guide
• Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx 25)
• Shock Pump
