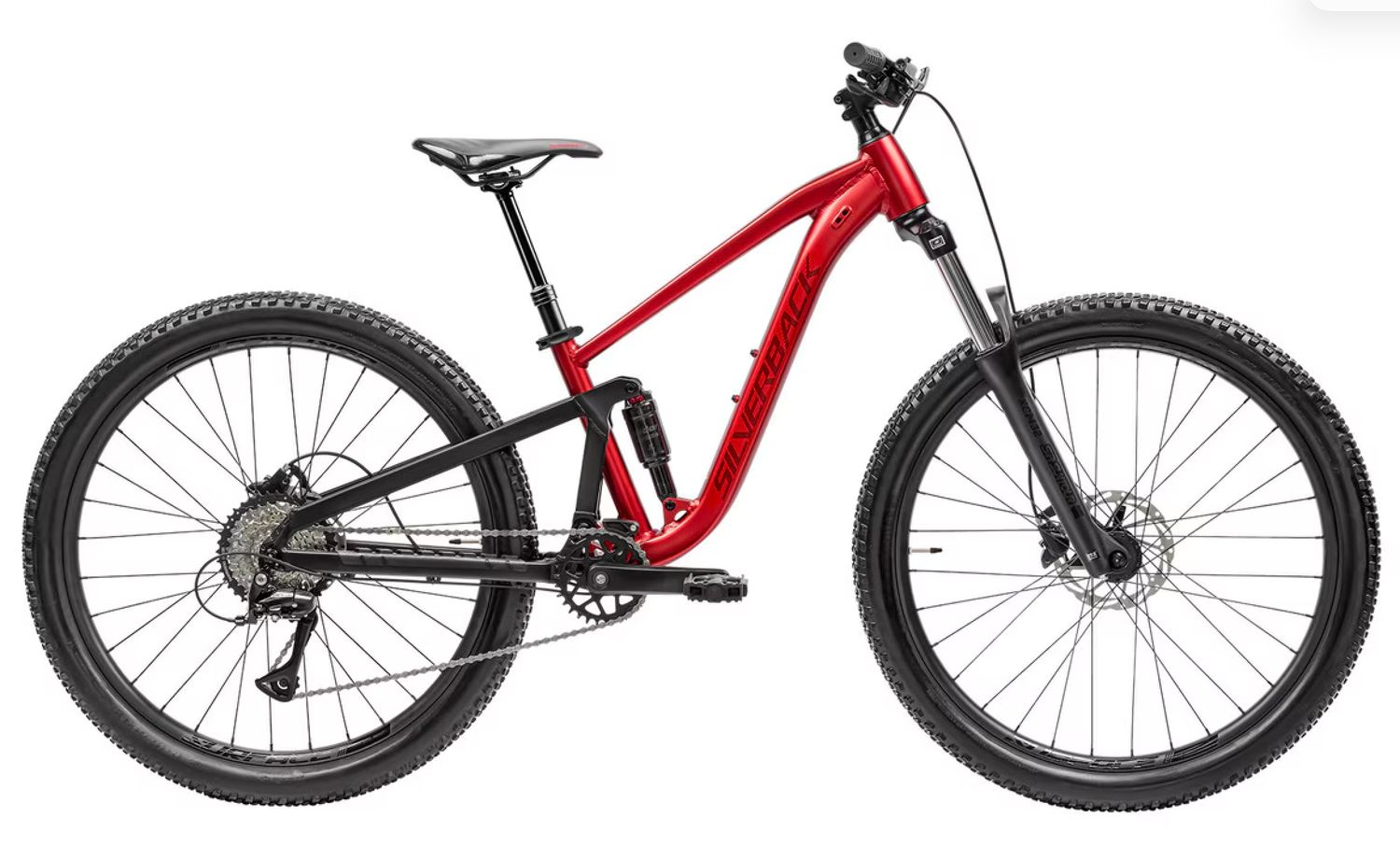

SE SERIES TRAIL 26"

Key Specifications and Features

Brakes

• Front: Shimano MT200 2-piston Hydraulic Disc, Resin Pads
• Rear: Shimano MT200 2-piston Hydraulic Disc, Resin Pads

Cassette

• Shimano CS-HG400 Acera 8-Speed, 11-40T

Chain

• KMC Z8.3

Colour

• Stealth Red

Crankset

• Surface alloy, 152mm Alloy Crank with 30T Narrow Wide Steel ring

Rear Derailleur

• Shimano RD-M3020 Acera, 7/8 Speed

Fork

• SR Suntour XCM32
  • Custom soft spring for youth
  • 32mm stanchions
  • 1.5" tapered steerer
  • 27.5"
  • 120mm Travel
  • 2 Position of Compression and Low Speed Rebound

Frame

• Alloy Trail Frame for 26" wheels
  • True single pivot design
  • 120mm Rear Travel with 170x35mm Shock
  • 20x10mm hardware
  • BSA Bottom Bracket
  • OLD 142mm

Grip

• Single Density, 120mm

Handlebar

• Surface Alloy
  • Diameter: Ø31.8mm
  • 9° Back sweep
  • 20mm Rise
  • 640mm width

Handlebar Stem

• Surface Alloy
  • Barbore: Ø31.8mm
  • Extension: 45mm
  • Rise: 3°

Hubs

• Front: Joytech, 6-bolt disc, 32H, QR, OLD: 9x100mm
• Rear: Joytech, 6-bolt disc, 32H, Thru-axle, OLD: 12x142mm, 8~11-speed

Rims

• Front: Surface alloy, 26" Symmetrical Alloy Rim, 25mm Internal width, Tubeless Ready
• Rear: Surface alloy, 26" Symmetrical Alloy Rim, 25mm Internal width, Tubeless Ready

Rotors

• Front: Tektro, 160mm, 6-bolt
• Rear: Tektro, 160mm, 6-bolt

Seat Post

• Surface, alloy, Ø30.9mm

Shifters

• Right: Shimano SL-M315-8R, 8-Speed Right Shift Lever

Shock

• RS25-Raidon R
  • 170x35mm
  • 20x10mm hardware

Tyres

• Front: CST 26" x 2.4"
• Rear: CST 26" x 2.4"
