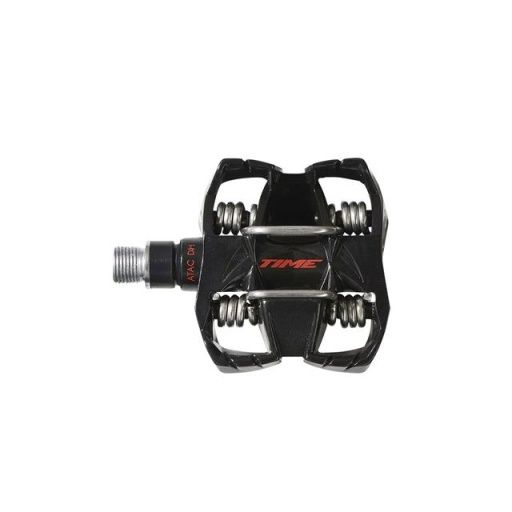

TIME PEDALS ATAC DH 4 DH/TRAIL BLACK

TIME ATAC DH 4 DOWNHILL / TRAIL PEDAL, INCLUDING ATAC CLEATS, BLACK

The DH 4 is built with an aluminium body and oversized axle to handle the roughest trail conditions and biggest descents. TIME's famous easy entry and exit system allows riders to effortlessly put a foot down when needed and clip back in fast. The open, self-cleaning design keeps the pedal clean, ensuring its function is not compromised by dirt, debris, or mud.

Specifications

• Bearings: Steel
• Body component: Aluminium
• Cleats: ATAC cleats
• Pedal stack height: 19mm
• Angular freedom: n/a
• Contact surface area: n/a
• Distance pedal spindle / crank arm: 54mm
• Lateral freedom: 5mm
• Release angle: -10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
• Tension: no
• Threading: 9/16 - 20 inch
• Colour (Pedal): Black
• Accessories: ATAC cleats
• Intended use: Enduro / Trail / DH
• Weight (per pedal): g

Features

• Rugged for downhill performance
• Easy pedal entry and exit to put foot down when needed
• Cleats included with all pedal purchases
